Restored classics, ready to drive home.

A boutique selection of cars and performance engines we've personally restored or gone through end-to-end. Every item on this page is one we'd be proud to drive ourselves.

Sold

For sale · Crate engine

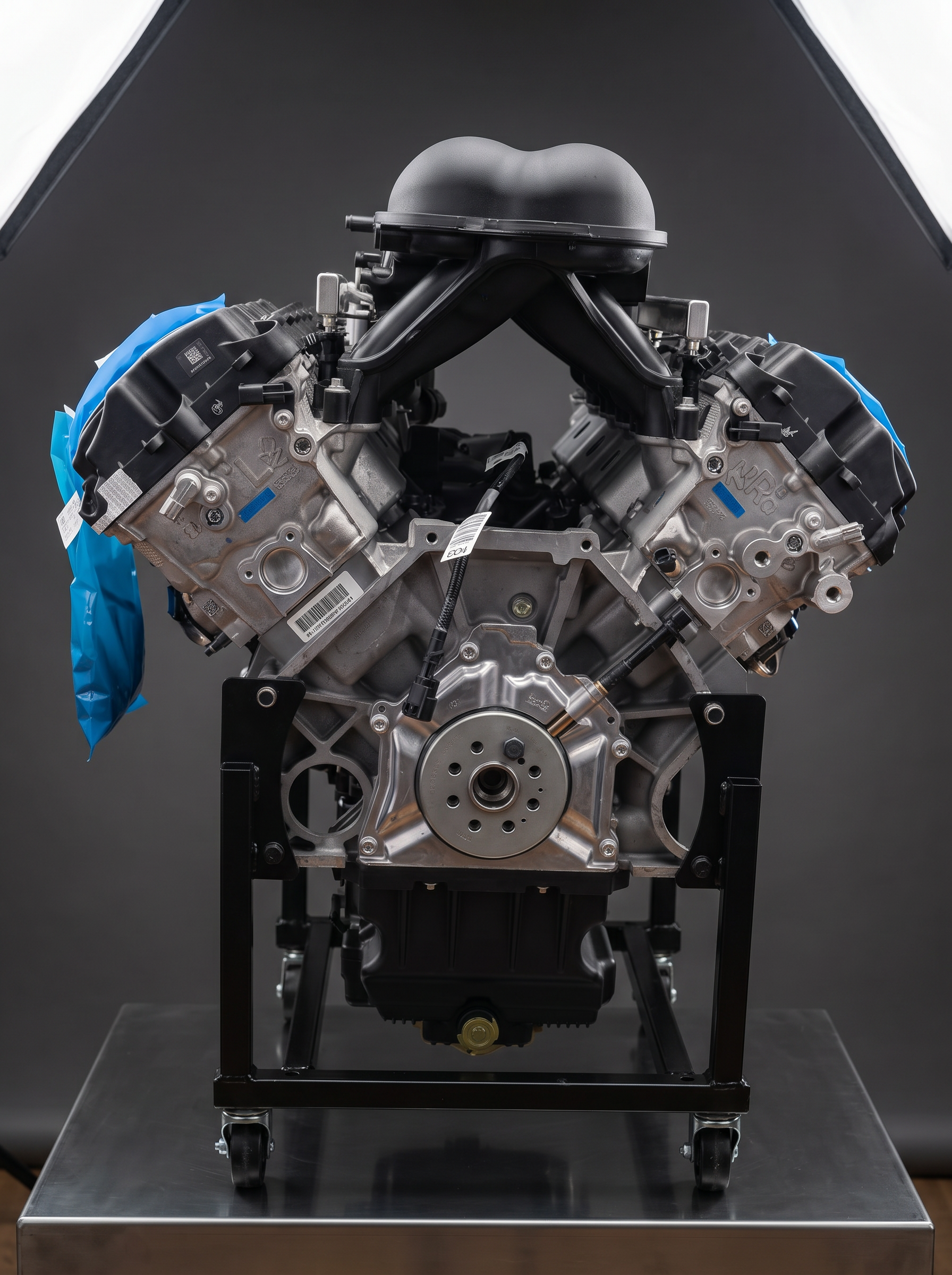

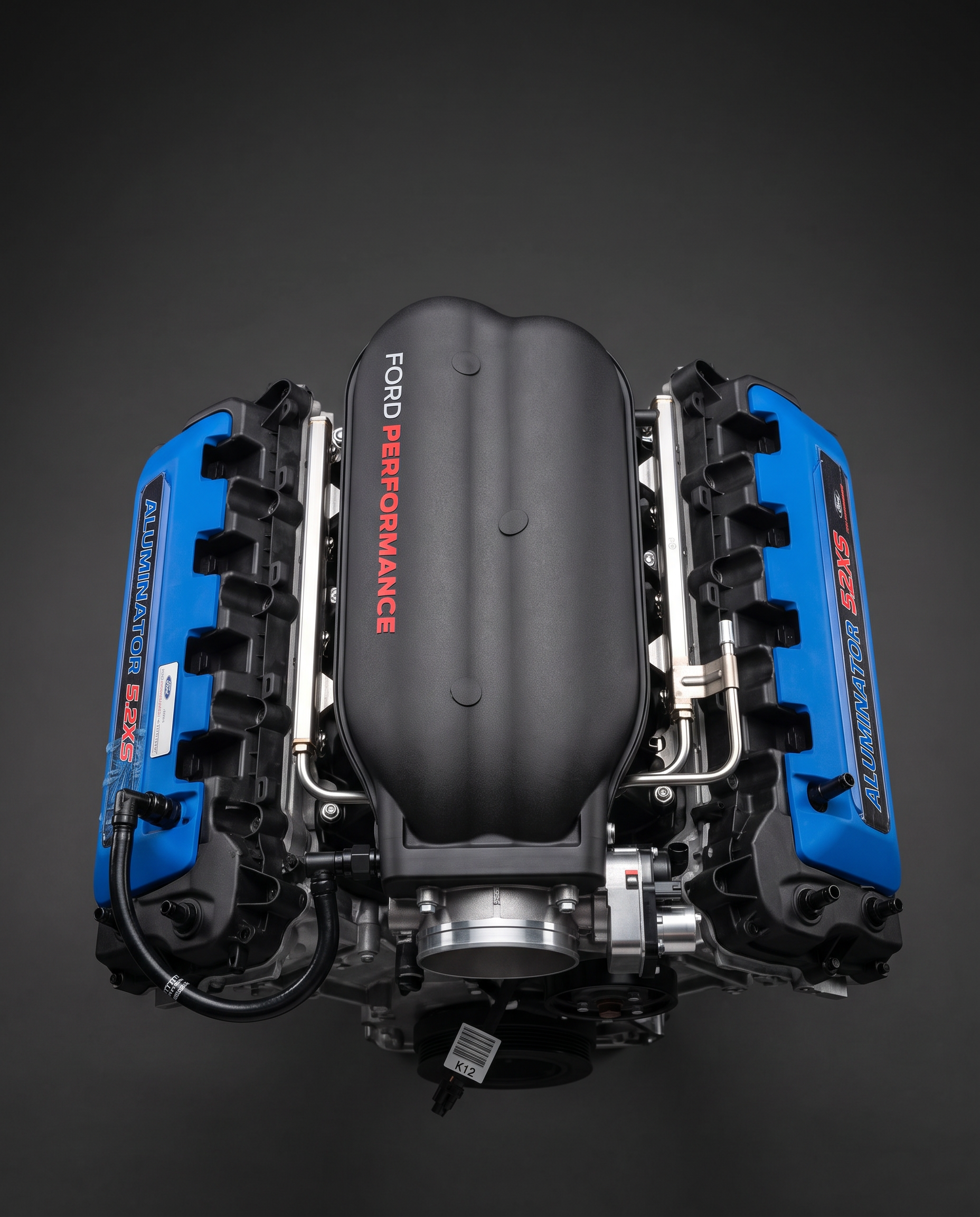

Ford Performance Aluminator 5.2 XS

Crate Engine

$29,145

Built with technology developed for the Shelby GT350 Mustang and Ford's Cobra Jet racing program, the Aluminator 5.2 XS is a naturally aspirated, high-revving crate engine engineered for serious performance.

Its 5.2-liter cross-plane V8 produces 580 horsepower at 7,800 rpm and 445 lb-ft of torque at 4,500 rpm, delivering strong midrange power with an unmistakably aggressive top end. Each Aluminator was hand assembled by the same Ford Performance technicians responsible for building Mustang Cobra Jet drag-racing engines.

The 5.2 XS combines a Shelby GT350 aluminum block and fully CNC-ported cylinder heads with a Cobra Jet short-runner intake manifold, dual 65 mm throttle body and high-RPM pulse ring. Internally, forged Mahle pistons, Manley H-beam connecting rods, ARP2000 rod bolts, billet oil-pump gears and a forged-steel cross-plane crankshaft provide the strength required for sustained high-RPM use.

Key specifications

  • Displacement: 5.2 liters
  • Configuration: Naturally aspirated cross-plane V8
  • Horsepower: 580 hp at 7,800 rpm
  • Torque: 445 lb-ft at 4,500 rpm
  • Compression ratio: 12.0:1
  • Shelby GT350 aluminum cylinder block
  • Fully CNC-ported four-valve GT350 aluminum cylinder heads
  • Mahle hard-anodized forged pistons with low-friction coating
  • Manley H-beam connecting rods with ARP2000 bolts
  • Forged-steel cross-plane crankshaft and crankshaft sprocket
  • Billet-steel gerotor oil-pump gears
  • Cobra Jet short-runner intake manifold
  • 1,517-CFM dual 65 mm Cobra Jet throttle body
  • Ford Performance camshafts and PAC valve springs
  • Variable cam timing with low-leak-rate phasers
  • Shelby GT350 oil pan with integrated windage and slosh baffling
  • 47 lb/hr fuel injectors
  • 200-amp alternator and Cobra Jet-style front accessory drive
  • Exclusive Ford Performance blue coil covers with Aluminator 5.2 XS badging

Vehicle compatibility

Designed to work with 2015–2017 Mustang GT electronics, although a custom calibration is required.

For manual-transmission installations, Ford Performance recommends the M-6017-504V Control Pack. Automatic-transmission applications require the appropriate automatic control system and custom calibration.

Installation notes

The engine does not include:

  • Vehicle wiring harness or PCM
  • Flywheel or flexplate
  • Headers

The engine-mount bosses and bellhousing bolt pattern are compatible with traditional 4.6-liter Ford modular-engine applications, making the Aluminator 5.2 XS an exceptional foundation for a premium restomod, track build or high-performance Mustang project.

Inquire About This Engine 208-853-5411

For sale · Crate engine

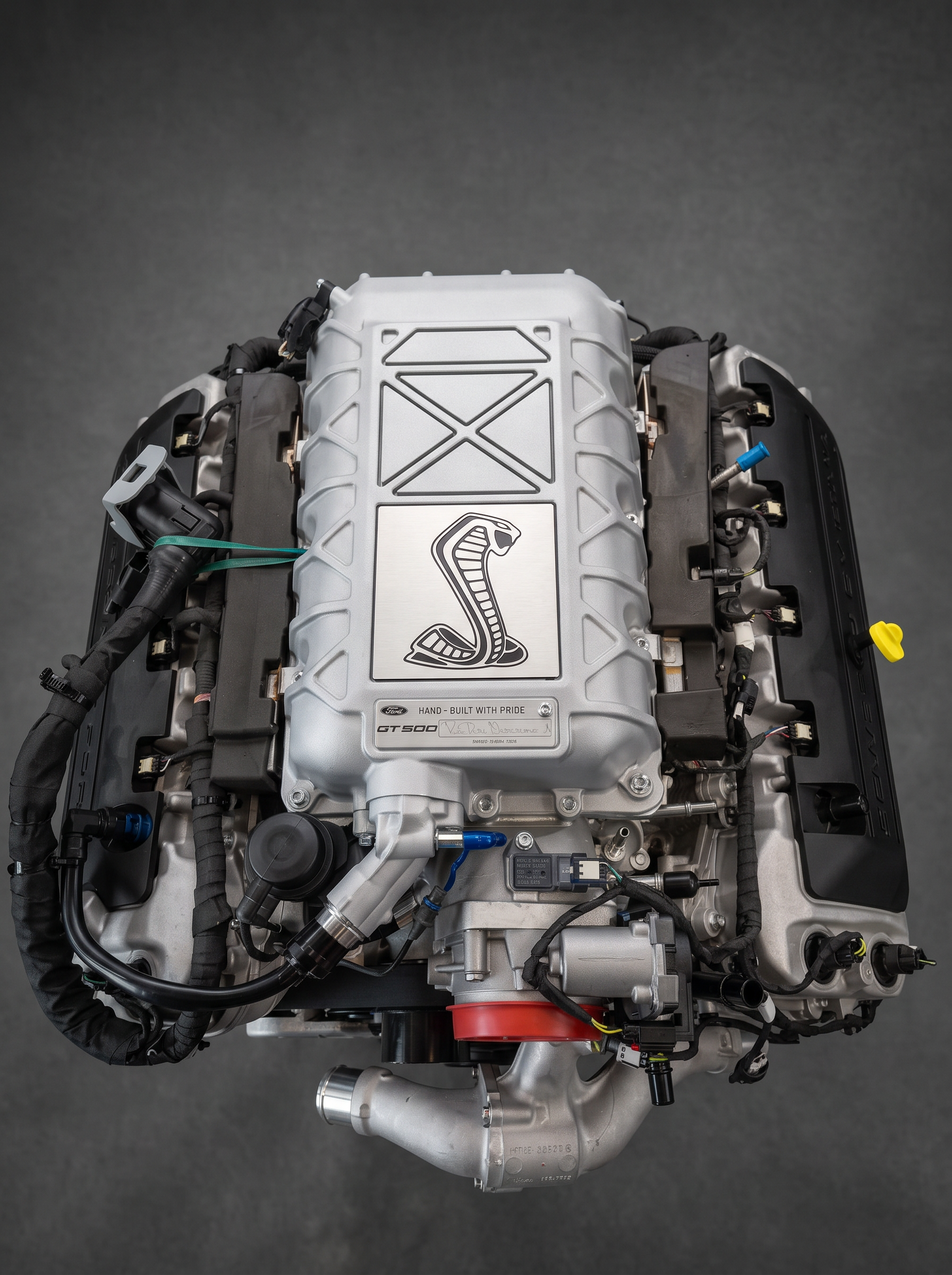

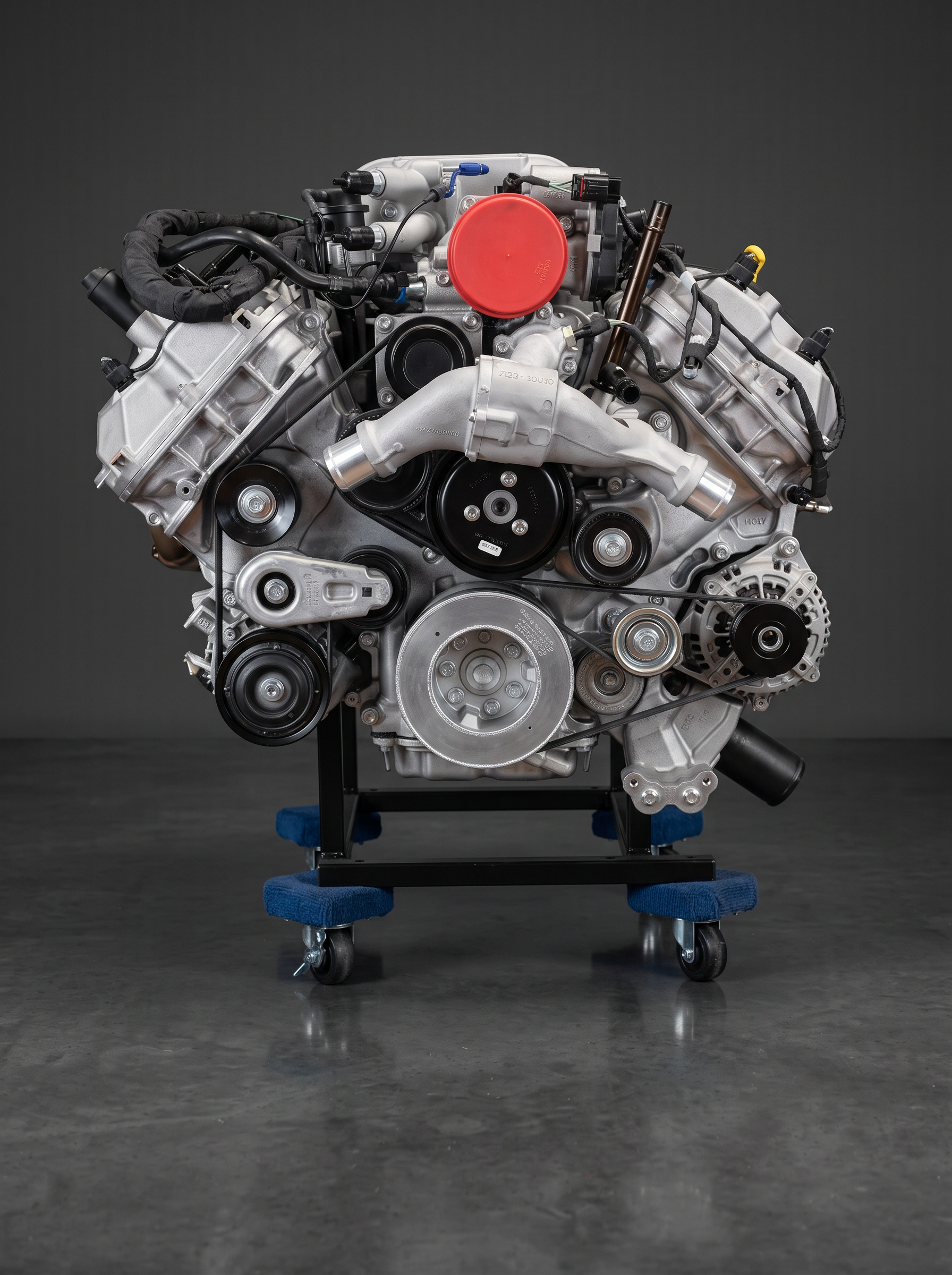

Ford Performance 5.2L Supercharged

M-6007-M52SC

$32,450

Straight from the 2020-and-newer Shelby GT500, the Ford Performance M-6007-M52SC is a supercharged and intercooled 5.2-liter V8 engineered to deliver exceptional power with factory-developed durability.

Producing 760 horsepower and 625 lb-ft of torque, this complete crate engine is built around a high-strength aluminum block, forged rotating assembly and an Eaton TVS R2650 supercharger. It delivers the kind of immediate torque, high-RPM power and unmistakable supercharged performance expected from Ford's flagship Mustang platform.

Premium fuel is required.

Key specifications

  • Displacement: 5.2 liters
  • Configuration: Supercharged and intercooled V8
  • Horsepower: 760 hp
  • Torque: 625 lb-ft
  • Compression ratio: 9.5:1
  • Bore: 94 mm
  • Stroke: 93 mm
  • Supercharger: Eaton TVS R2650
  • High-strength aluminum engine block
  • Plasma-transferred wire-arc cylinder liners
  • Forged-steel crankshaft
  • Forged-steel connecting rods
  • Grafal-coated forged-aluminum pistons
  • Dry weight: Approximately 536 pounds without front-end accessory-drive components

Included components

This crate engine includes a selection of new original-equipment components to simplify installation:

  • Left- and right-side exhaust manifolds
  • Alternator
  • Starter
  • Air-conditioning compressor
  • 92 mm throttle body
  • Supercharger belt
  • Water-pump and alternator belt

With its forged internals, advanced cylinder-liner technology and factory-engineered supercharger system, the Ford Performance 5.2L is an outstanding foundation for a premium restomod, pro-touring build or modern high-horsepower Mustang project.

Inquire About This Engine 208-853-5411

For sale · Crate engine

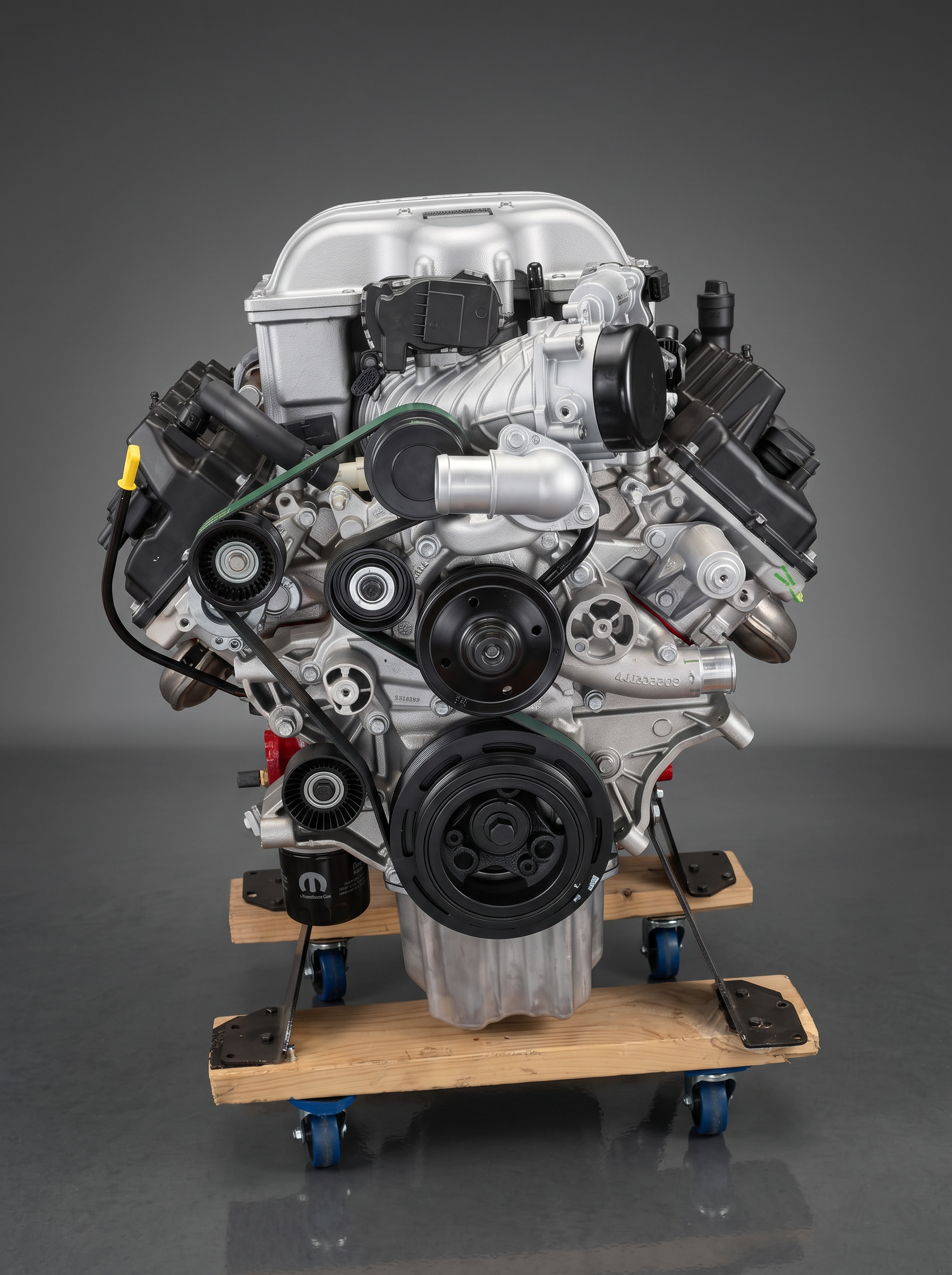

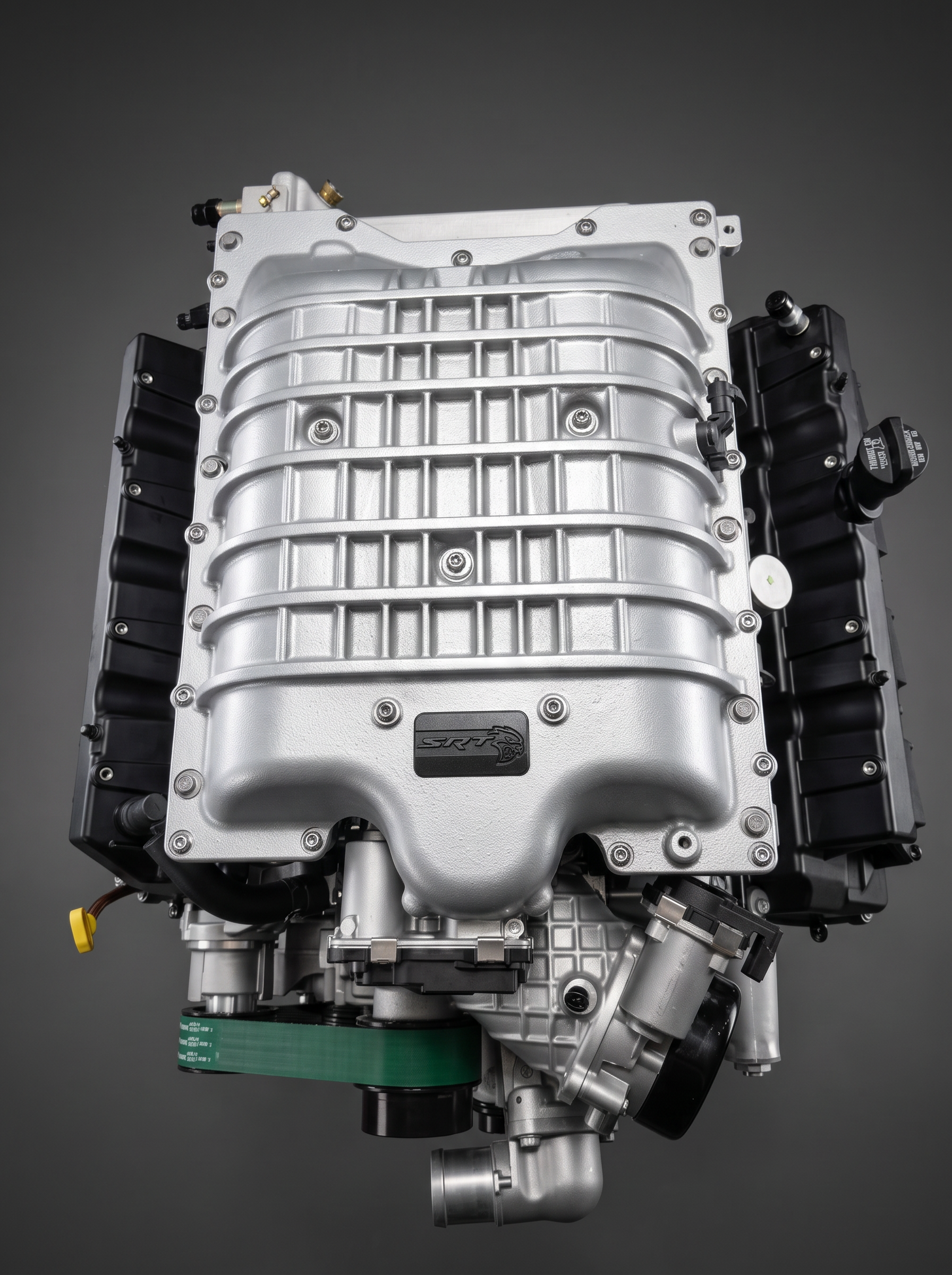

Mopar Hellcrate Redeye 6.2L

Part No. 68303091AC

$28,250

Built around the formidable powerplant developed for the Dodge Challenger SRT Hellcat Redeye, the Mopar Hellcrate Redeye brings factory-engineered, supercharged HEMI performance to custom builds and restorations.

This 6.2-liter supercharged Gen III HEMI produces 807 horsepower and 717 lb-ft of torque, delivering the kind of immediate acceleration and relentless power normally reserved for Dodge's highest-performance production cars.

With a cast-iron block, forged rotating assembly and specialized aluminum cylinder heads, the Hellcrate Redeye is engineered to handle serious horsepower while maintaining the durability expected from a factory-developed performance engine.

Key specifications

  • Displacement: 6.2 liters
  • Configuration: Supercharged Gen III HEMI V8
  • Horsepower: 807 hp
  • Torque: 717 lb-ft
  • Compression ratio: 9.5:1
  • Peak engine speed: 6,500 rpm
  • Bore: 4.090 inches / 103.9 mm
  • Stroke: 3.580 inches / 90.9 mm
  • Cast-iron engine block
  • Four-bolt powder-metal main caps
  • Forged-alloy crankshaft
  • Forged powder-metal connecting rods
  • Diamond-like-coated wrist pins
  • Forged high-strength alloy pistons
  • Aluminum cylinder heads with HEMI-style hemispherical combustion chambers
  • 54.3 mm hollow-stem intake valves
  • 42 mm sodium-filled exhaust valves

Installation notes

The engine does not include:

  • Hellcat control pack, available separately at $3,475
  • Installation requirements and additional components may vary by vehicle and application

The Hellcrate Redeye is an exceptional foundation for a modern Mopar restomod, pro-touring build, custom muscle car or other high-performance application requiring genuine factory-engineered Hellcat power.

Inquire About This Engine 208-853-5411

For sale · Crate engine

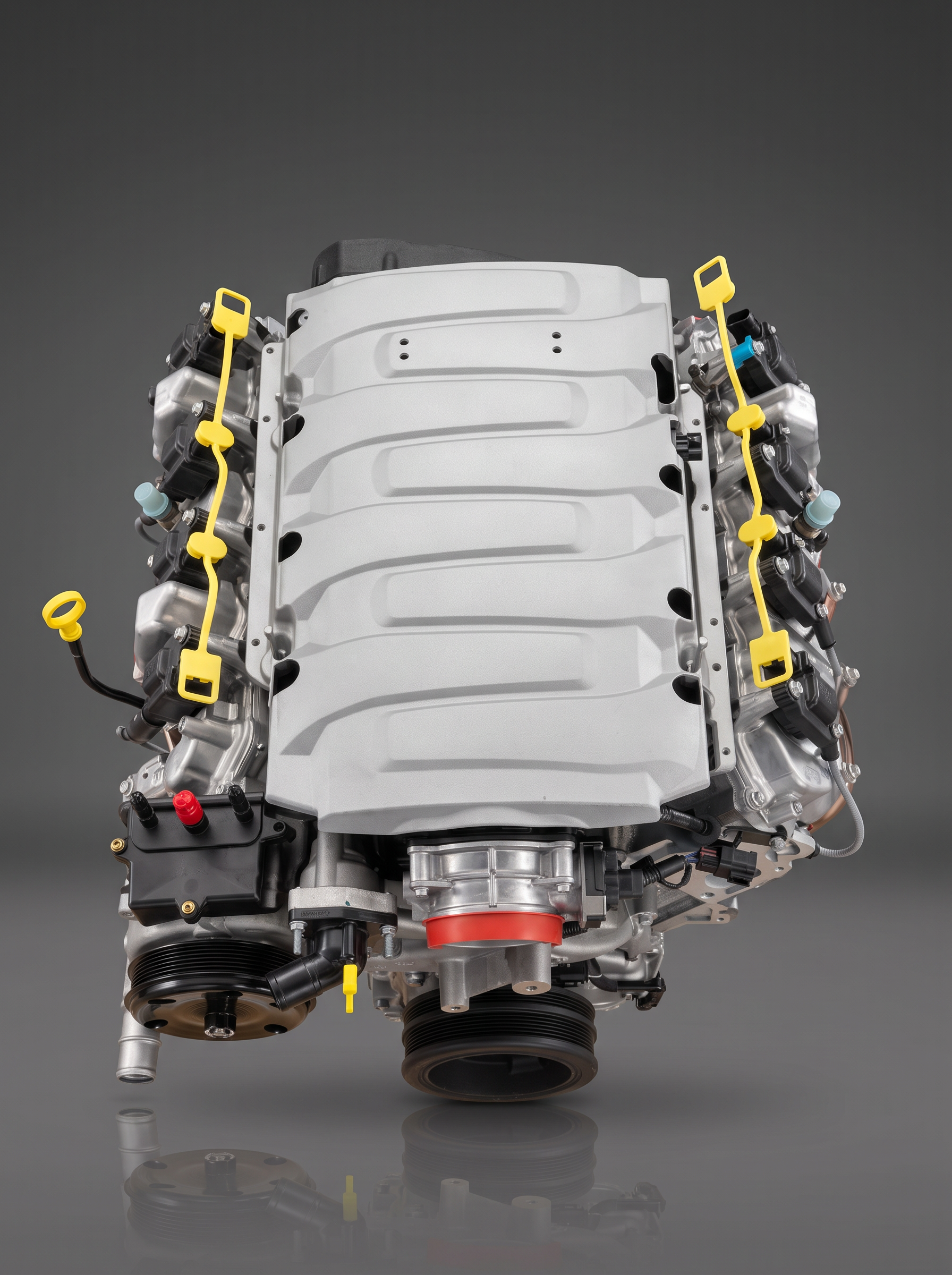

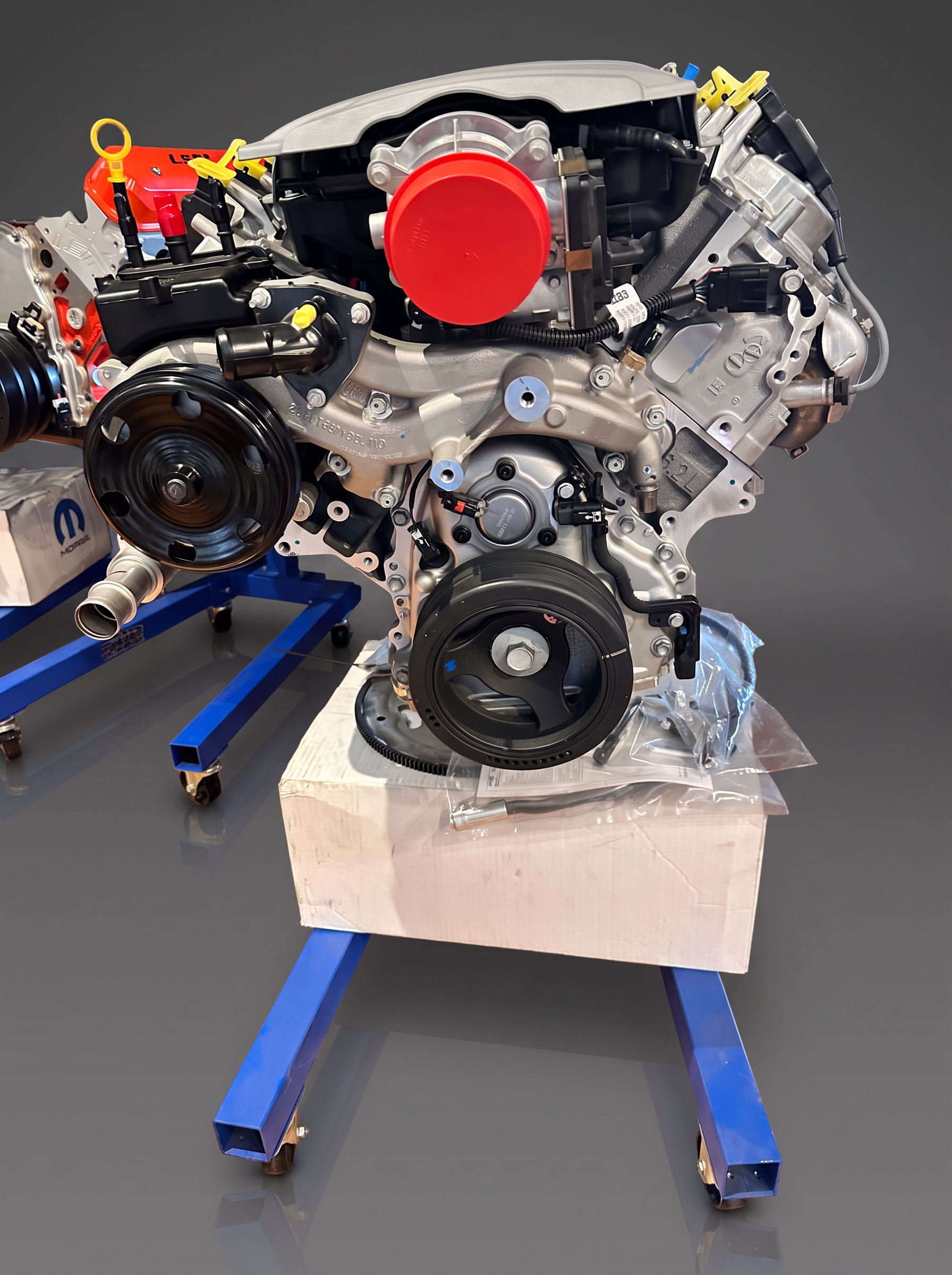

Chevrolet Performance LT1 Connect & Cruise

6.2L Wet-Sump V8 with 10L90-E 10-Speed Automatic

$24,298

Bring modern Chevrolet performance and drivability to your custom build with the LT1 Wet-Sump Connect & Cruise Powertrain System. This matched engine-and-transmission package combines Chevrolet's naturally aspirated 6.2-liter LT1 V8 with the electronically controlled 10L90-E 10-speed automatic transmission.

Producing 455 horsepower and 455 lb-ft of torque, the LT1 delivers strong, responsive power while incorporating advanced technologies such as direct fuel injection, continuously variable valve timing and Active Fuel Management.

Although the LT1 shares its basic architecture with Chevrolet's LS engine family, it features a unique block casting, cylinder-head design and oiling system developed for the newer generation of small-block performance.

Key specifications

  • Displacement: 6.2 liters / 376 cubic inches
  • Configuration: Naturally aspirated V8
  • Lubrication system: Wet sump
  • Horsepower: 455 hp at 6,000 rpm
  • Torque: 455 lb-ft at 4,600 rpm
  • Compression ratio: 11.0:1
  • Direct fuel injection
  • Continuously variable valve timing
  • Active Fuel Management cylinder-deactivation technology
  • Advanced combustion-system design

10L90-E transmission specifications

The matched transmission included in this Connect & Cruise package:

  • Transmission: 10L90-E 10-speed automatic
  • Configuration: Two-wheel drive
  • Integral electronic controller
  • First-gear ratio: 4.70:1
  • Top-gear ratio: 0.641:1

Installation notes

Please note:

  • Additional installation components, programming and vehicle-specific modifications may be required

The Connect & Cruise system is designed to simplify the process of installing a modern GM powertrain into a restoration, restomod, pro-touring car or custom project. Its broad gear range provides strong acceleration from a stop while maintaining relaxed engine speeds during highway cruising, for a versatile powertrain that combines classic V8 character with modern performance, efficiency and everyday drivability.

Inquire About This Engine 208-853-5411

Looking for something specific?

Mustang, Camaro, C10, Bronco — if it's not here, we probably know where one is. Tell us what you're chasing and we'll help you find it.
